// const uid = require("cuid");
const _ = require("./_");
const Connection = require("./connection");
/**
* Neurons are the engines that process and guide information though a neural
* network. A neural networks "intelligence" is usually measured by the ability
* for neurons to effectively process information as a group.
*
* ### What is a neuron?
*
* A _`Neuron`_ is a simplified mathematical model of a biological neuron.
*
* In people, a neuron is a cell that collects inputs from synapses (i.e. eyes,
* ears, etc. or other neurons) and triggers an `output` signal when the
* incoming signals pass a certain threshold.
*
* In biological neurons (in animals) or in artificial neurons (i.e. AI, NN,
* Deep Learning, etc.), one neuron doesn’t do much, but when combined, neural
* networks allow us to recognize the world around us, solve problems, and
* interact with our environment.
*
* ### How do they work?
*
* Neural networks were inspired by the human brain, and like in a human brain
* the basic building block is called a `Neuron`. Its functionality is similar
* to a human neuron, i.e. it takes in some inputs and fires an output. In
* purely mathematical terms, a neuron in the machine learning world is a
* placeholder for a mathematical function, and its only job is to provide an
* output by applying the function on the inputs provided.
*
*
*
* The function used in a neuron is generally called an _"activation function"_.
* There have been 5 major activation functions tried to date, step, sigmoid,
* tanh, and ReLU. For this neuron we are using a _"sigmoid"_ activation
* function.
*

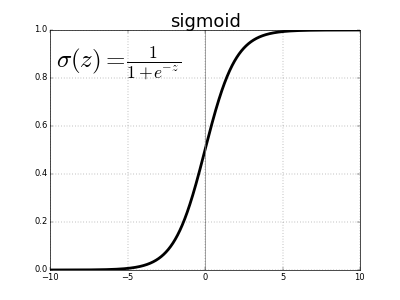

* ### What is a _"sigmoid activation function"_?
*
* A sigmoid function - or logistic function - is defined mathematically as:
*
*
*
* The value of the function tends to zero when _**z**_ tends to negative
* infinity and tends to 1 when _**z**_ tends to infinity. A sigmoid activation
* function is an approximation of how a "real neuron" would behave; it's an
* assumption in the field of deep learning.
*
* @constructs Neuron
*
* @param {Object} options
* @param {number} [options.id]
* @param {number} [options.bias]
* @param {Object} options.optimizer
* @param {number} options.optimizer.rate
* @param {number} options.optimizer.momentum
* @param {number} options.optimizer.decay
* @param {number} options.optimizer.alpha
* @param {number} options.optimizer.beta
* @param {number} options.optimizer.gamma
*
*
* @prop {string} id
* @prop {number} bias
* @prop {Object} optimizer
* @prop {number} optimizer.rate
* @prop {number} optimizer.momentum
* @prop {number} optimizer.decay
* @prop {number} optimizer.alpha
* @prop {number} optimizer.beta
* @prop {number} optimizer.gamma
* @prop {Object} incoming
* @prop {{ "[ID]": Neuron }} incoming.targets
* @prop {{ "[ID]": number }} incoming.weights
* @prop {Object} outgoing
* @prop {{ "[ID]": Neuron }} outgoing.targets
* @prop {{ "[ID]": number }} outgoing.weights
* @prop {number} _output
* @prop {number} output
* @prop {number} error
*
* @example
* //===============================================
* // One Neuron (No Hidden Layers) ================
* //===============================================
* const { Neuron } = require("@liquidcarrot/nn")
*
* const neuron = new Neuron();
*
* neuron.activate(0); // 0
* neuron.propagate(1); // -1
*
* //===============================================
* // Three Neurons (Hidden Layers) ================
* //===============================================
* const { Neuron } = require("@liquidcarrot/nn")
*
* const input = new Neuron(); // Input Neuron (Layer)
* const hidden = new Neuron(0.1); // Hidden Neuron (Layer)
* const output = new Neuron(0.2); // Output Neuron (Layer)
*
* input.connect(hidden, 0.3); // Connects input layer to hidden layer
* hidden.connect(output, 0.4); // Connects hidden layer to output layer
*
* input.activate(0); // 0
* hidden.activate(); // 0.52497918747894
* output.activate(); // 0.6010858826658407
*
* output.propagate(1); // -0.09565228299910712
* hidden.propagate(); // -0.009900697661026392
* input.propagate(); // -0.0029702092983079176
*/
function Neuron(neuron={}) {
this.id = neuron.id || Neuron.uid();
this.type = neuron.type == undefined ? "hidden" : neuron.type; // "input", "hidden", "output"
this.bias = neuron.bias == undefined ? Math.random() * 2 - 1 : neuron.bias;
this.connections = [];
// OPTIMIZERS
// CHECK: https://keras.io/optimizers/
// CHECK: http://ruder.io/optimizing-gradient-descent/index.html
// this._optimizer = Neuron.optimizers[Object.keys(Neuron.optimizers)[Math.floor(Object.keys(Neuron.optimizers).length * Math.random())];
this.optimizer = {}
this.optimizer.rate;
this.optimizer.momentum;
this.optimizer.decay;
this.optimizer.alpha;
this.optimizer.beta;
this.optimizer.gamma;
this.squash;
this.cost;
this.incoming = {
targets: {}, //new Map(),
weights: {}, //new Map(),
connections: {}
}
this.outgoing = {
targets: {}, // new Map(),
weights: {}, // new Map(),
connections: {}
}
this._output; // f'(x)
this.output; // f(x)
this.error; // E'(f(x))
this._error;// E(f(x))
//================================================
// CORE FUNCTIONS ================================
//================================================
/**
* @param {Neuron} neuron
* @param {number} [weight]
*
* @example
* const { Neuron } = require("@liquidcarrot/nn")
*
* const neuron = new Neuron();
* const other = new Neuron();
*
* neuron.connect(other);
*/
this.connect = function(neuron, weight) {
const connection = new Connection(this, neuron, weight);
this.outgoing.targets[neuron.id] = neuron;
this.outgoing.connections[neuron.id] = connection;
neuron.incoming.targets[this.id] = this;
neuron.incoming.connections[this.id] = connection;
this.outgoing.weights[neuron.id] = neuron.incoming.weights[this.id] = weight == undefined ? Math.random() * 2 - 1 : weight;
this.outgoing.connections[connection.id] = neuron.incoming.connections[connection.id] = connection;
}
/**
* @param {number} [input]
*
* @returns {number} Returns the neuron's output
*
* @example
* //===============================================
* // One Neuron ===================================
* //===============================================
* const { Neuron } = require("@liquidcarrot/nn")
*
* const neuron = new Neuron();
*
* neuron.activate(3);
*
* //===============================================
* // Two Neurons ==================================
* //===============================================
* const { Neuron } = require("@liquidcarrot/nn")
*
* const neuron = new Neuron();
* const other = new Neuron(0.1);
*
* neuron.connect(other, 0.2);
*
* neuron.activate(3); // 3
* other.activate(); // 0.6681877721681662
*/
this.activate = function(input) {
const self = this;
function sigmoid(x) { return 1 / (1 + Math.exp(-x)) } // f(x)
function _sigmoid(x) { return sigmoid(x) * (1 - sigmoid(x)) } // f'(x)
if(input != undefined) {
this._output = 1; // f'(x)
this.output = input; // f(x)
} else {
// Σ (x • w)
const sum = Object.keys(this.incoming.targets).reduce(function(total, target, index) {
return total += self.incoming.targets[target].output * self.incoming.weights[target];
}, this.bias);
this._output = _sigmoid(sum); // f'(x)
this.output = sigmoid(sum); // f(x)
}
return this.output;
}
/**
* @param {number} target
* @param {number} [rate=0.3]
*
* @return {number} Returns neuron's marginal error
*
* @example
* //===============================================
* // One Neuron ===================================
* //===============================================
* const { Neuron } = require("@liquidcarrot/nn")
*
* const neuron = new Neuron();
*
* neuron.activate(3); // 3
* neuron.propagate(0); // 3
*
* //===============================================
* // Two Neurons ==================================
* //===============================================
* const { Neuron } = require("@liquidcarrot/nn")
*
* const neuron = new Neuron();
* const other = new Neuron(0.1);
*
* neuron.connect(other, 0.2);
*
* neuron.activate(3); // 3
* other.activate(); // 0.6681877721681662
*
* other.propagate(0); // 0.14814583086672545
* neuron.propagate(); // 0.009876697690471913
*/
this.propagate = function(target, rate=0.3) {
const self = this;
//𝛿E /𝛿squash
const sum = target == undefined ? Object.keys(this.outgoing.targets).reduce(function(total, target, index) {
// Δweight
self.outgoing.targets[target].incoming.weights[self.id] = self.outgoing.weights[target] -= rate * self.outgoing.targets[target].error * self.output;
return total += self.outgoing.targets[target].error * self.outgoing.weights[target];
}, 0) : this.output - target;
// 𝛿squash/𝛿sum
this.error = sum * this._output
// Δbias
this.bias -= rate * this.error;
return this.error;
}
//================================================
// END CORE FUNCTIONS ============================
//================================================
//================================================
// UTILITY FUNCTIONS =============================
//================================================
this.toJSON = function() {
return {
id: this.id,
bias: this.bias,
type: this.type
}
}
/**
* @param {boolean} [array=false] Iff `true`, will return an `Array` (`[[INCOMING_WEIGHTS], [OUTGOING_WEIGHTS]]`) - instead of a JSON Object (`{ incoming: [INCOMING_WEIGHTS], outgoing: [OUTGOING_WEIGHTS]`)
*
* @returns {Object|Array.<Array.<Number>>} Returns an `Array` or `Object` of incoming and outgoing weights
*/
this.weights = function(options) {
options = options || {
json: true
}
if(options.json) return {
incoming: Object.values(this.incoming.weights),
outgoing: Object.values(this.outgoing.weights)
}
else return [Object.values(this.incoming.weights), Object.values(this.outgoing.weights)];
}
//Code here...
//================================================
// END UTILITY FUNCTIONS =========================
//================================================
}
Neuron.neurons = 0;
Neuron.uid = function() {
return ++Neuron.neurons;
}
Neuron.activations = {
SIGMOID: function(x, dx) {
const fx = 1 / (1 + Math.exp(-x));
if(!dx) return _.clamp(fx);
else return _.clamp(fx * (1 - fx));
},
RELU: function(x, dx) {
if(x > 0) {
const fx = x;
return !dx ? _.clamp(x) : 1;
} else return 0;
},
TANH: function(x, dx) {
const fx = Math.tanh(x);
if(!dx) return _.clamp(fx);
else return _.clamp(1 - (fx * fx));
},
IDENTITY: function(x, dx) {
return !dx ? _.clamp(x) : 1;
},
STEP: function(x, dx) {
return x > 0 && dx ? 1 : 0;
}
}
/**
* Optimizers are initiated with
* { rate, momentum, decay, alpha, beta, epsilon, gamma }
*/
Neuron.optimizers = {
SGD: function() {},
NESTEROV: function() {},
RMSPROP: function() {},
ADAGRAD: function() {},
ADADELTA: function() {},
ADAM: function() {},
AMSGRAD: function() {},
ADAMAX: function() {},
NADAM: function() {}
}
module.exports = Neuron;
